1930s map showing the route between Acton Town and South Acton.
South Acton station is now just served by North London line trains but it once also had platforms for the District Line and for the Hammersmith & Chiswick railway.

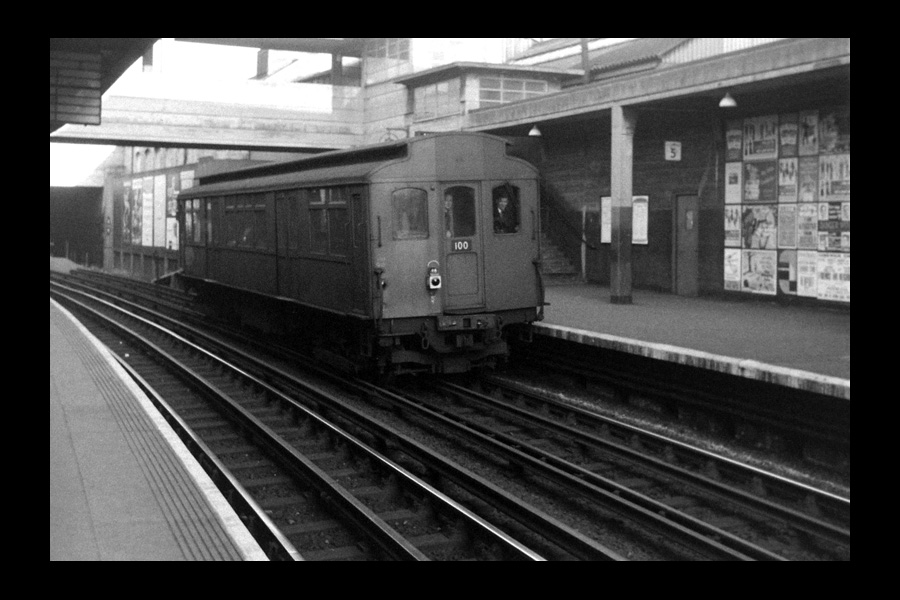

Starting at the Acton Town end: a view of platform 5 and the one-car shuttle that ran between Acton Town and South Acton, seen here c. Feb 1959. The photo was taken from platform 4.
(Photo by Allan Hailstone. © 1959
Move your cursor over the image to see the view, photographed from a similar position, in 2012.
The partition gives an impression of more change than has actually occurred. The disused platform 5 still exists, it's just hidden from view by the partition. Needless to say, the track that served it has been removed.
The passageway that used to take passengers to platform 5.
Platform 5 looking west. The platform edge is indicated by the join with the boarding that now covers the track area.
Platform 5 looking east, toward the South Acton direction.
Platform 5 looking east. The brick building beyond the bridge is the former signalling office.
Acton Town looking west. The island platform that the photographer is standing on provides platforms 3 & 4 (3 being eastbound Piccadilly line, 4 being eastbound District line - usually). The missing track that led to platform 5 is indicated by the grass area on the right. The brick building on the right is the former signalling office.
The point at which the line crossed Bollo Lane. In the process of being dismantled after the line's closure, the bridge that was here collapsed into the road and had to be cut up where it lay!
Bollo Lane looking westward in the direction of Acton Town, showing the abutment for the bridge. The bridge skewed across the road at an angle.
The shuttle just shy of South Acton station, which was just to the right of the photograph.
The embankment was removed entirely after closure.
c. Feb 1959)
Photo by Allan Hailstone.
The shuttle standing at South Acton station. The North London line platforms were to the left and at a lower level.
c. Feb 1959)
Photo by Allan Hailstone.
Two street level views of the station can be seen here and here.
The site of the old South Acton station. The station was on an embankment at a higher level than the North London line station to its right.
South Acton station on the North London Line, looking north toward
The District Line station was to the left of the NLL station
on an embankment in the area largely obscured by the red tree. The route of the
track bed can still be made out south of the station site for
a short distance.
(photo Apr 2003).
Similar view some five years later than the photo above. There is evidence of the building work about to take place on the former site.
Another old station site falls to the developers. Without prior knowledge, no one would guess that the station as it is today was anything different, yet the District Line platforms were located where the large block of flats on the left is now, and the Hammersmith & Chiswick's bay platform was located on the right (see below).
A question on this site asking about the previous use of the area on the right received
a detailed reply from Tony Holland, reproduced in
its entirety below.
The first building [on the right]
is pretty much on the site of the down-side station building.
In front of it is the 'bus stop' shelter that replaced it! The
set-back of the fence close to the signal is roughly in the position
of the bottom step of the footbridge, the stairs rising towards
the camera. The bridge from which the photo was taken would seem
to be a replacement on a new site. The signal box was located
to the left, roughly by the base of the new footbridge.
The rest of the row of buildings follows the rear of the platform,
and pretty much covers the alignment of the headshunt that once
existed. A short way beyond the platform end was a trailing link
to the platform road. This was the access to the Hammersmith
branch hence the footbridge in the distance is wide enough for
three tracks [this is line from South Action to Hammersmith and
Chiswick, dealt with elsewhere on this site].
(The footbridge mentioned in
the paragraph above. Photo Jan 2004)
The branch paralleled the line
on a rising embankment north to Acton Lane bridge, then curved
sharply right and down. If you call up 'Southfield Road' on Streetmap
you can see the alignment curving round behind Southfield playing
fields and Hatfield Road. In my day it was freight only, but
had originally carried passenger services. There was also a very
small engine shed at South Acton (the only North London Railway
shed apart from Bow) although there is no clear record of its
location - best guess is near the junction of the Hammersmith
The District station was a bit higher than the NLR, and was carried
over Palmerston Road, and rising on embankment towards the District
main line that goes over the North London behind the camera.
Although services had ceased a few months before I started work
there, there were plenty of remains in situ - all they had done
was close it down! There was originally a link beyond the station
to the NLR line, and this was used for the construction trains
for the Ealing & South Harrow, and District electrification
works. It was disused from 1905, but not taken up until 1932
when the branch was singled and electrified. The junction was
just this side of the Fletcher Road footbridge in the distance.
Doug Barrow sent in his reminisces
of the line:
I was born during World War 2 and lived
in Ealing for a while before moving to Acton, then lived subsequently
not far away in Middlesex from about 1949-50 until 1957 (when
my family moved to Kent).
After passing the 11+ Examination I attended Acton County Grammar
School - my First Choice in the three "would like to attend"
schools we had to nominate in connection with that examination,
before sitting the exam, from 1954 until early 1957. Acton County
Grammar School was near Acton Town Station and adjacent to part
of the Underground's Ealing Common Depot. Some of the School's
classrooms were alongside the Ealing Common Depot's storage sidings,
and I well remember seeing C, D and E Class former District Railway
stock stabled in those sidings (where I also saw a newly-modified
equipment-wise, from Metadyne O and P Class stock) set of COP
Class arrive and stable. The sidings also had regular visits
by former Metropolitan Locomotive No. 9, which I think was stabled
at the Depot if not at the nearby Acton Works; at that time this
locomotive still wore the grey livery in which the locomotives
of this class were painted during the wartime.
I was very pleased to see your website as I've always been nterested
in the London Underground system (other railways, too - and I've
been a working member on a heritage railway for 23 years, and
since 2003 I've also been working on the restoration of the Class
37 locomotive which my oldest son bought that year).
My Father was born in Bollo Lane, in a house not far from the
overbridge, and when we lived in Acton my family's houses (we
started off at a house not far from the one in which my Father
was born, and later on moved a few doors along) were in Bollo
Lane. All of the houses concerned, along with many others, were
demolished around 1960 but I haven't yet researched this aspect
during my writing-up of our Family History.
My choice of Acton County Grammar School was due to my feeling
for the Acton area and the opportunity to visit my Grandmother
and Aunts living in Bollo Lane. Many were the times I visited
South Acton Station during the years I lived in Acton and then
in Middlesex, and having revisited the station during 2005, I
noticed that the former footbridge had been replaced and the
two North London Line platforms shortened to 3-coach lengths
(trains, in the "old"days, were 6 coaches long).
I can still visualise the road approach on the northern side
of South Acton Station when the District Line Branch operated,
and how the District Line track continued for a short distance
beyond the Stop Lamp (with the former rail connection's ramp
down to the level of the North London Line's Up Track). The Branch
services were normally operated by one of the two G (latterly
Q23) Class motor coaches - 4167 & 4176 - which were modified
to become double-ended (cab each end) for these services; I recall
seeing other Q-Class stock, in the form of a pair of motor coaches
running back-to-back, working these services if 4167 & 4176
North London Line services through South Acton Station were worked
by Oerlikon stock but I remember seeing a set of LMS Compartment
EMU stock working a Richmond-bound service (one of the very few
photographs I took in those days: must find the photograph!)
on one occasion and it's possible that either type of stock was
used (as was the case on the DC Lines from Euston to Watford).
Other South Acton memories include -
(1) A "Black 5" locomotive-hauled passenger train of
maroon-liveried corridor stock heading westwards over Bollo Lane
South Level Crossing (i.e. the Richmond line, not the Kew and
Feltham freight line), but I saw it from a distance as I was
walking along Bollo Lane so didn't record the working.
(2) The regular steam-hauled coal train which ran through South
Acton station then took the freight-only curve, close to Chiswick
Park Station but at a different level, from the NLL to join up
with the District Line track between Turnham Green and Stamford
Brook Stations (the District Line track was accessed via the
Piccadilly Line eastbound track between Chiswick Park and Turnham
Green Stations then a long link from the Piccadilly to the District;
and on the last occasion I travelled along this section of the
Piccadilly Line the remains of the underbridge which the coal
workings used to access the Piccadilly's eastbound line, by passing
under the westbound track, were still visible). These coal trains
ran to the Coal Depot behind West Kensington Station, and on
the return trip used the District Line's Richmond-direction track
back to the South Acton curve's junction close to Chiswick Park
(3) The friendly Signalman at Bollo Lane South Level Crossing
who showed me how the signalbox worked and who kindly gave a
young me an interesting old railway book which 50+ years on is
still in my possession.
(4) Regular coal and other freight trains passing through South
Acton Station and using the Kew and Feltham route via Bollo Lane
North Level Crossing. In those days there was an Express Dairy
Depot, and a side entrance to Chiswick Bus Works, between the
two level crossings; and there was a road access, to the Underground's
Acton Works, on the south side of and adjacent to the west-side
overbridge abutment where the South Acton Branch cossed Bollo
I now have an answer to why in the 1950's my Grandmother referred
to the South Acton Branch Line service as "The Ginny"
- there was a steam railmotor service, from South Acton to a
Hammersmith & Chiswick Station (where I recall seeing, many
years after passenger services ceased, a BR steam locomotive
shunting at the coal depot) and the steam railmotor was known
locally as "Little Jenny" and the name seems to have
lived on since that steam railmotor and the replacement petrol-powered
version finished in 1916.
Doug Barrow. 19/10/2007.
